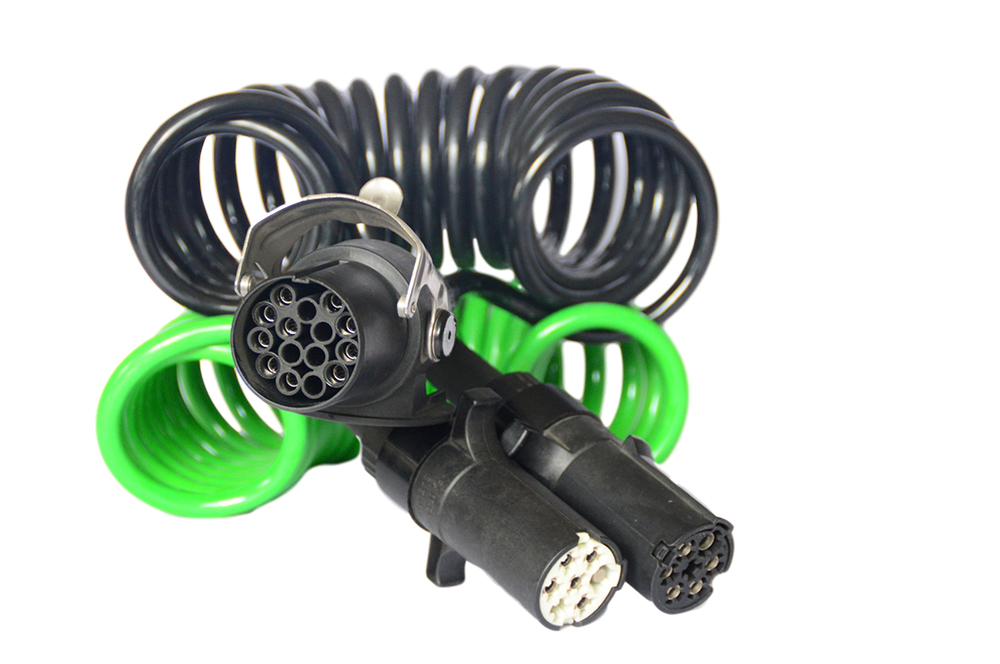

Coiled Cables - Adapter / 24V

Products

Upcoming Products

Specifications

Standard

Features

Materials

Sheath material with excellent resistance to general chemicals and greases.
Durable and reliable.

Colour

Black cable sheath with colour coded ISO connectors

Application

Normal and Supplementary electrical connector cables for commercial vehicles

Plug Variants

Moulded plug | Plastic plug | Metal plug

Premium

Max Extended Length (m)	Cable Specification (mm²)	Voltage	Standard
3.0	6 x 1.5, 1 x 2.5	24 V	ISO 1185
3.0	4 x 1.5, 3 x 2.5	24 V	ISO 3731
3.5	6 x 1.5, 1 x 2.5	24 V	ISO 1185
3.5	4 x 1.5, 3 x 2.5	24 V	ISO 3731
4.0	6 x 1.5, 1 x 2.5	24 V	ISO 1185
4.0	4 x 1.5, 3 x 2.5	24 V	ISO 3731

Ecomony

Max Extended Length (m)	Cable Specification (mm²)	Voltage	Standard
3.0	6 x 1.0, 1 x 1.5	24 V	ISO 1185
3.0	4 x 1.0, 3 x 1.5	24 V	ISO 3731
3.5	6 x 1.0, 1 x 1.5	24 V	ISO 1185
3.5	4 x 1.0, 3 x 1.5	24 V	ISO 3731
4.0	6 x 1.0, 1 x 1.5	24 V	ISO 1185
4.0	4 x 1.0, 3 x 1.5	24 V	ISO 3731

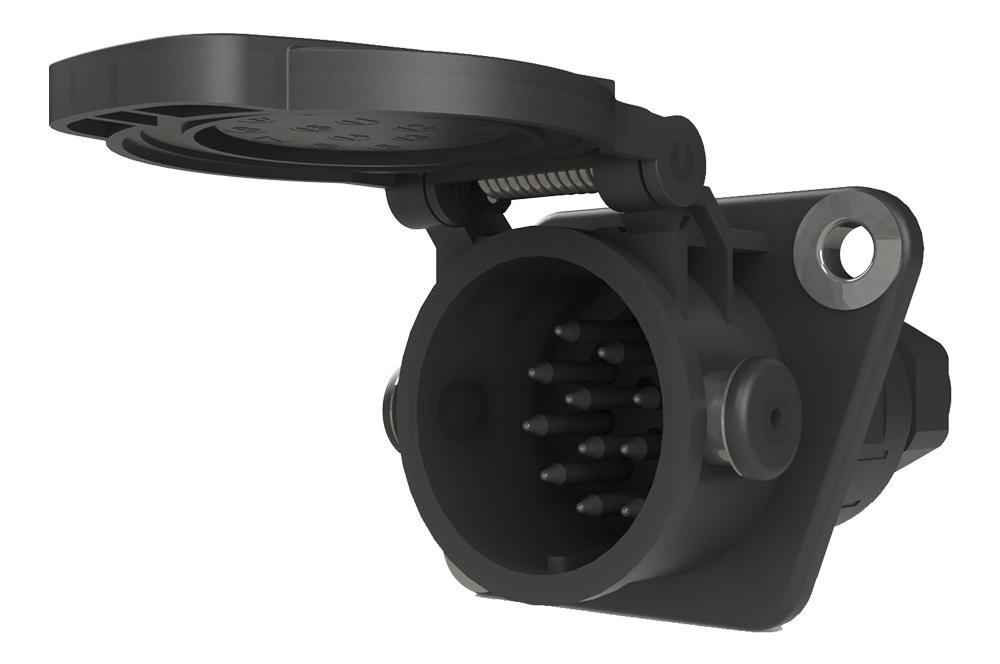

Pin Diagram (15 Pin ISO 12098)
